INTRODUCING NA-XT5
FUJIFILM X-T5
The Fujifilm X-T5 features an APS-C CMOS 4 X-Trans 5 HR BSI 40MP Sensor. The X-T5 is powered by a new X Processor 5 which provides extremely fast performance and improved responsiveness. Improved in-body stabilization delivers up to a 7EV benefit which is a significant benefit for video shooters. The intelligent 425 point hybrid autofocus tracking system is now sensitive down to -7EV allowing it accurately focus in extreme low light conditions.
The X-T5 allows you to record oversampled 6.2K 30p or 4K 30p with a 1.23x crop factor or subsampled 4K 60p with the full width of the sensor. When combined with the Atomos Ninja V, the X-T5 can output up to 6.2K 12 bit ProRes RAW. Like the X-T4, the X-T5 also features HLG and F-Log capture to increase dynamic range, protecting highlights and shadows for editing. New to the X-T5 is F-Log2 which provides you with 13+ stops of dynamic range instead of just 12 stops with F-Log.
Key Camera Specifications
- 40MP APS-C X-Trans CMOS 5 HR BSI sensor
- In-body image stabilization up to 7 EV benefit
- 20 fps shooting with AF (15 fps with mechanical shutter)
- 3.69M-dot OLED electronic viewfinder
- 4K 60p, 6.2K 30p 4:2:2 10-Bit Videor
- Internal F-Log and F-Log2 capture
- Dual UHS-II SD card slots
- Two-axis tilt rear screen

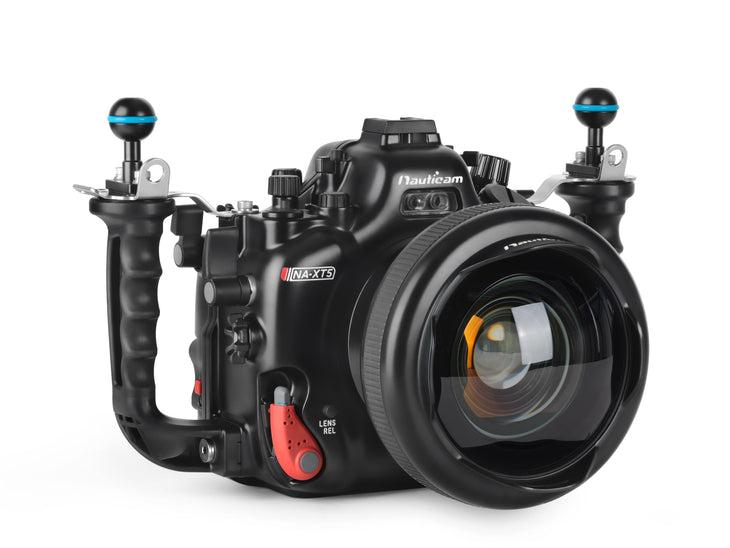

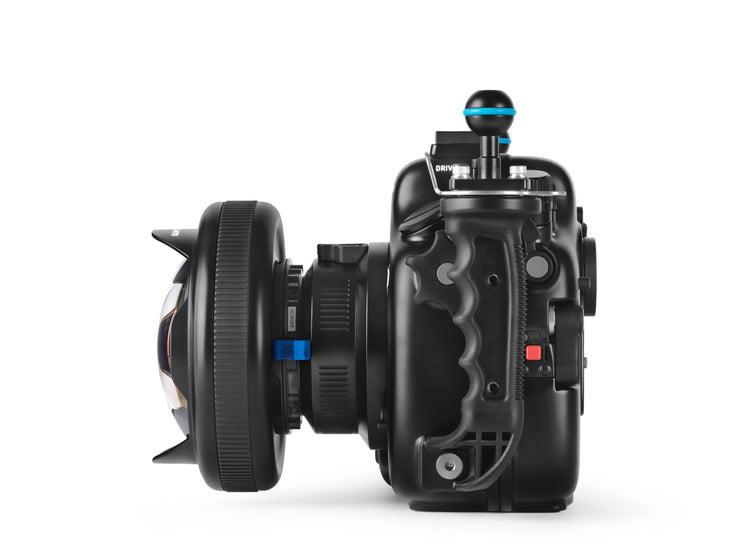

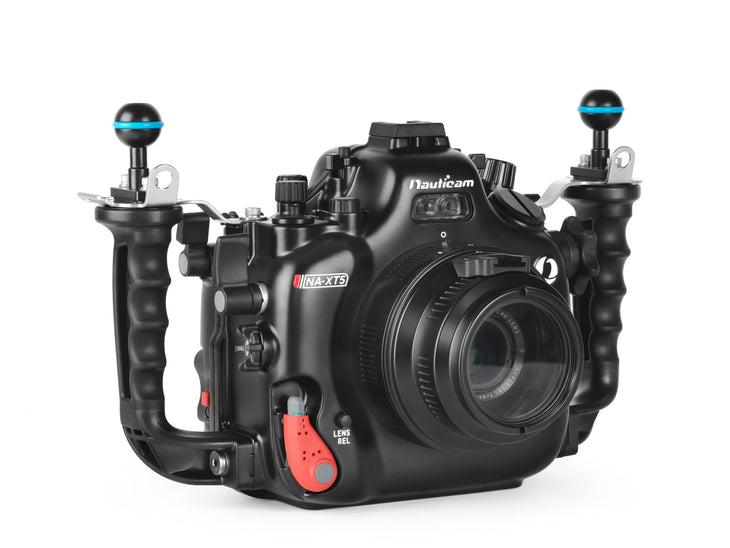

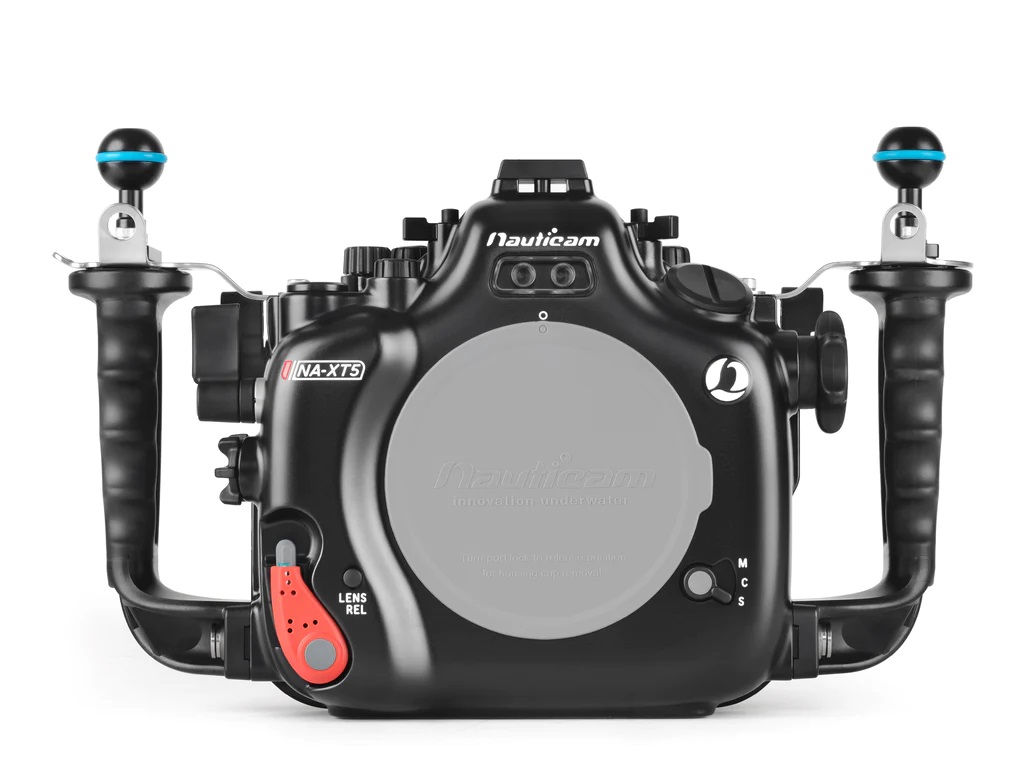

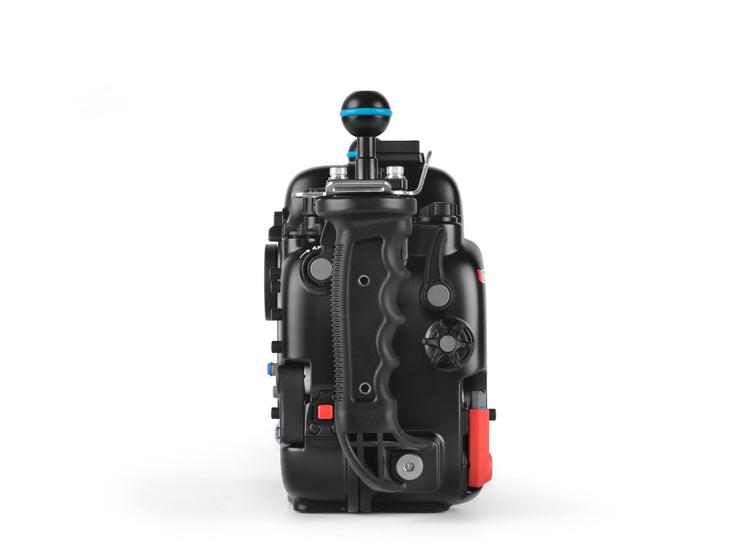

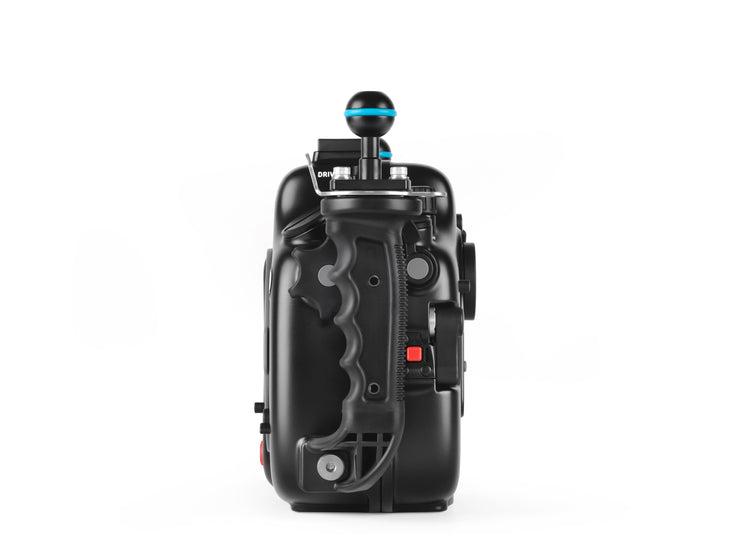

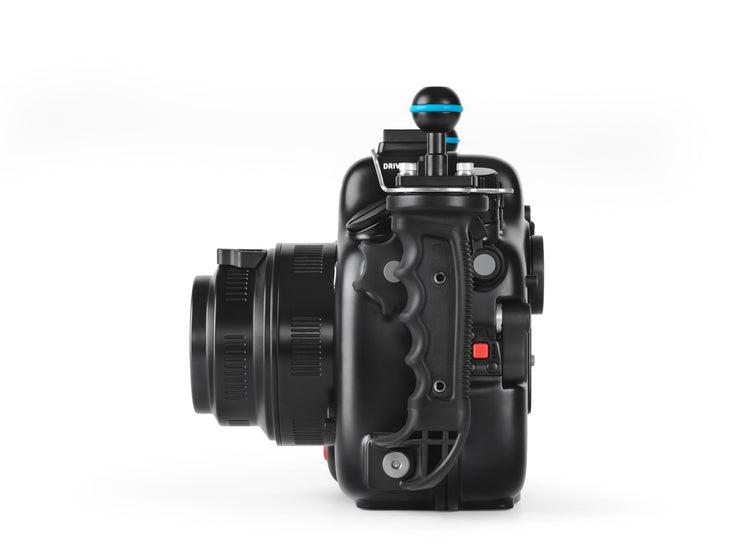

THE NAUTICAM NA-XT5 UNDERWATER HOUSING
Nauticam has supported all the previous X-T cameras and continues to create innovative and ultra-functional housings for this line with the NA-XT5 underwater housing. The NA-XT5 features DSLR-style housing and port lock mechanisms as well as integrated ergonomic handles. The housing is designed with our Mission Control concept of placing the most important camera controls as close to the handles as possible to facilitate effortless and quick camera operation to ensure you don't miss the shot.

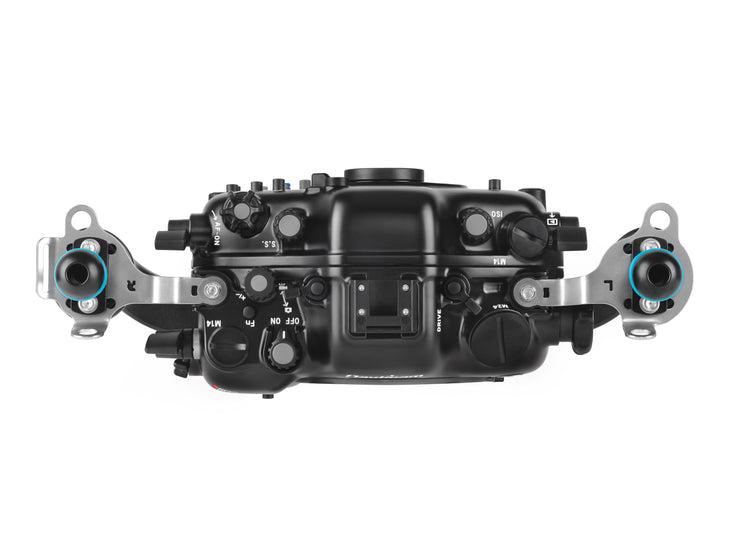

The NA-XT5 features thumb levers near both handles, with the left thumb lever actuating the playback function and the right thumb lever the AF-ON control. The housing includes two M14 and one M24 bulkhead openings to accommodate a variety of accessories.
The NA-XT5 uses the N100 Port System shared with the Fujifilm XH1, XT3 and XT4 system. A selection of port options are available for a variety of lenses.
PREMIUM PROFESSIONAL OPTICS
Nauticam's wide range of ports and in-house corrective optics are the perfect compliment to the NA-XT5's inherent flexibility. Built around the N100 Port System, the NA-XT5 supports a wide variety of X-mount lenses. In addition, there are several options available to use the groundbreaking WACP-1 and WACP-C wide-angle corrective lenses as well as the more compact and in-water removable WWL-1B and WWL-C.
For example, with the Fuji XF 18-55mm f/2.8-4 R LM OIS lens, the WACP-1 brings the original 75º field-of-view to an impressive 130º with sharper corners, an ~0" minimum focus distance and a more natural looking image than would be provided by a standard glass dome port. For complete water contact lens compatibility, you can view the port chart here.
HDMI 2.0
A large bore M24 bulkhead is located at the front of the housing for use with HDMI 2.0 or HDMI 1.4 (with a step-down adapter to M16) external monitors and recorders. The X-T5 can output up to 6.2K 12 bit ProRes RAW over HDMI 2.0. See the resources sidebar for additional details and recommended setups.
FLASH TRIGGERING
Reliable automatic flash exposure is available with the NA-XT5 and a variety of optically fired flashes, precisely reproducing the Fujifilm EF-X8 flash at a proportionally greater intensity. This system yields accurate automatic TTL flash performance – even in manual exposure mode – with no electrical sync cables to flood!
The NA-XT5 is also compatible with the Nauticam Mini Flash Trigger for Panasonic/Fujifilm (PN 26305). The Flash Trigger allows for rapid fire manual flash firing via fiber optic, with no camera battery drain.
The NA-XT5 comes fiber optic ready and accepts standard Sea & Sea style bushing connections. Nauticam Universal fiber optic cable system (PN 26216) for Inon, Sea&Sea strobes, provide exceptional light transmission for accurate TTL performance.
External Battery Pack

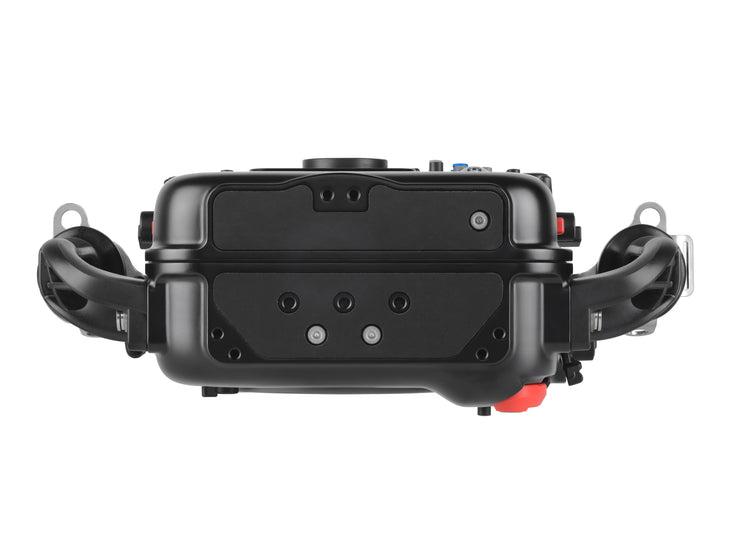

The NA-XT5 housing supports the use of an USB-C battery pack in order to greatly extend the time between battery swaps, and allowing the housing to remain sealed between dives. The battery compartment at the bottom of the housing supports batteries up to 150mm(W) x 18mm (H) x 72mm (D). Here is a known compatible battery with more to come:
- Anker USB-C Portable Charger 10000mAh with 20W Power Delivery, 523 Power Bank (PowerCore 10K). (180min of additional run time)
25303 USB-C to USB-C Right Angled Cable (in 0.5m length) is recommended for use with USB-C battery packs.
INTEGRATED VACUUM CHECK AND LEAK DETECTION SYSTEM
The Nauticam vacuum check and leak detection system is pre-installed in the NA-XT5 as standard equipment. Combined with an optional M14 Vacuum Valve II (PN 25624), this monitoring system provides constant updates throughout the dive as to watertight integrity of the housing via a multi-color LED on the rear of the housing.
What's In The Box:
- NA-XT5 Housing
- 90122 Spare main O-ring, O-ring remover and lubricant
- 2x Optical bulkhead caps
- 2x handles with mounting balls
- Panasonic CR-2032 Battery (for moisture alarm)
- Set of Allen Keys
- Manual instruction card
- Padded housing bag and shoulder strap
Recommended Accessories
- 25624 M14 Vacuum Valve II (Pushbutton Release)

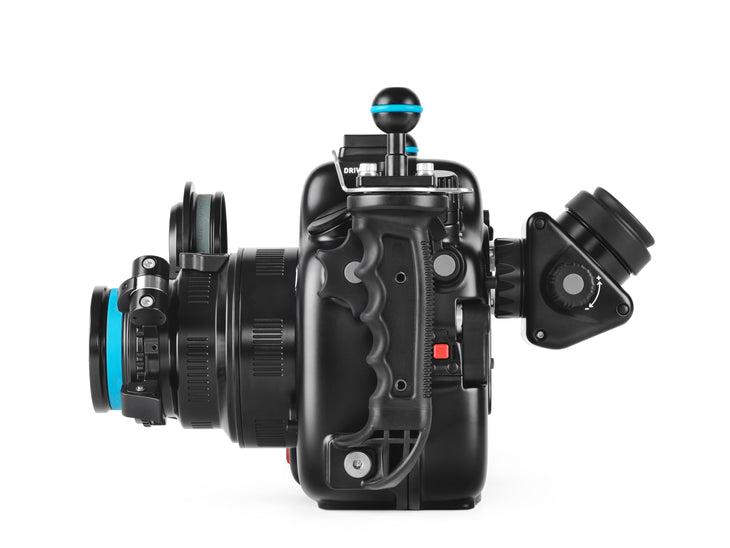

- 32211 Nauticam Full Frame Straight Viewfinder 32°/ 1:1
- 32212 Nauticam Full Frame Straight Viewfinder 40°/ 0.8:1
- 32213 Nauticam Full Frame Angle Viefwinder 32°/ 1:1
- 32214 Nauticam Full Frame Angle Viewfinder 40°/ 0.8:1
- 32211/32213 is recommended
- 26216 Universal Fiber Optic Cable
- 26305 Mini flash trigger for Panasonic/Fujifilm
- 25218 Mounting Ball Set for Tripod
- 25311 Strobe mounting ball for cold shoe
- 25312 Light mounting stem for cold shoe
- 25111 Strobe mounting ball for handle with screws *mounts on top M5 thread holes underneath cold shoe
HDMI Recommended Configurations:
For HDMI 2.0 Cable System
- 25086 M24 adaptor for HDMI 2.0 Cable
- 25077 M24D1R205-M28A1R170 HDMI 2.0 Cable (for NA-XT3/XT4/R5 to use with Ninja V housing) from SN: A467086 onwards.
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
- 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V and Ninja V+ 5" Recorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module
For HDMI 1.4 Cable System
- 25033 Standard HDMI Cable with M16 Thread
- 25081 M24-M16 Step Down Adaptor
- 25076 HDMI (D-D) Cable in 200mm Length for NA-XT2/NA-XH1/NA-A6400/NA-XT5
- 17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2" 4K HDMI Monitor with
HDMI 1.4 input
- 17925 NA-503-H Housing for SmallHD 503 UltraBright On-Camera Monitor (With HDMI 1.4 input)
