The WACP-1B is a 0.36x Wide Angle Conversion Port. Unlike traditional ports or wet-mate corrective wide-angle optics, the WACP-1B is a "dry" corrective optic that modifies a 28mm equivalent lens to an extremely sharp 130º. Not only is the newer WACP-1B smaller and lighter, but it now integrates a built in buoyancy collar and offers a user interchangeable port mount from N120 to N100.
TECHNICAL SPECIFICATIONS
| Depth Rating | 150m |
| Weight (in air) | 3.70 kg |
| Weight (in water) | Negative 0.01kg |
| Body Construction | Hard-anodized Aluminum Alloy |
| Lens Construction | 6 Elements in 5 Groups |
| Lens Coating | Anti-reflective on both sides |
| Mount System | Interchangeable N120 or N100 Mount |

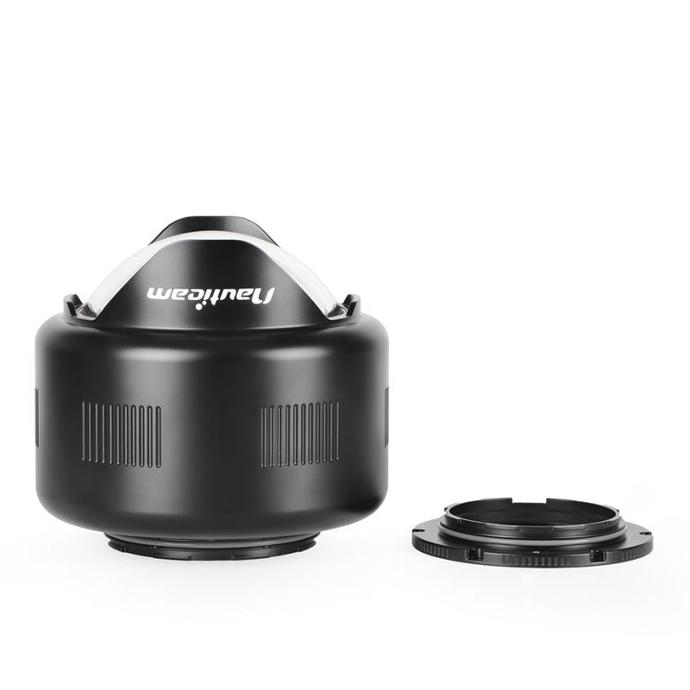

INTRODUCING N120/N100 0.36X WIDE ANGLE CONVERSION PORT WITH INTEGRATED FLOAT COLLAR AND INTERCHANGEABLE PORT MOUNTING RING
FOCUS
The WACP can focus from its front element to infinity in-water allowing for extremely close-focus wide angle shooting. When used with certain zoom lenses, the WACP can provide a variety of field-of-view options.
BUOYANCY COLLAR
An aluminum float collar is integrated into the WACP-1B and brings the in-water buoyancy 0.01kg negative.
COMPATIBLE LENSES
The WACP is designed to function at the full-frame equivalent focal length of 28mm. A wide variety of lenses are supported, both primes and zooms for Nikon, Canon and Sony as well as Super35 Cinema Systems. Please check the PORT CHART for supported lenses and suggested configurations as some lenses will require extension rings or adapters.
RESOURCES
RESOURCES
INCLUDED IN THE BOX
- Front Hard Cap
- N120 and N100 Bayonet Adaptor
- Rear Port Cap (N100 and N120)
- Carrying Bag
